CyberSwitching DC Charging Station, UL Certified, 3-phase 480V, up to 240kW, RFID

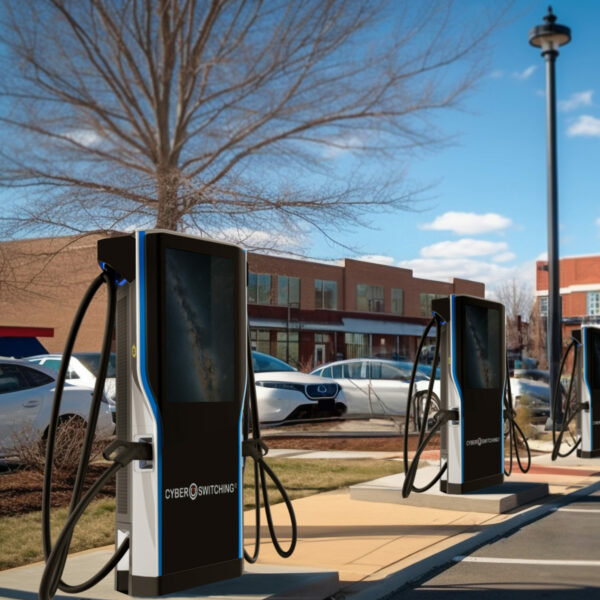

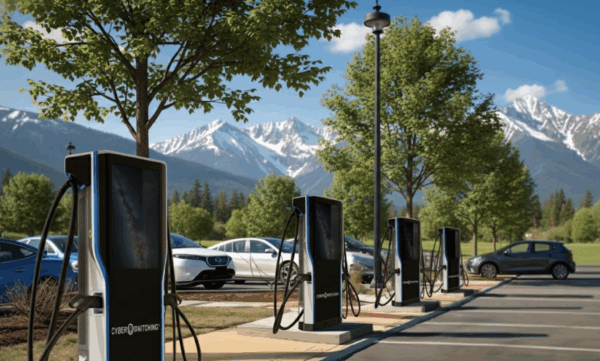

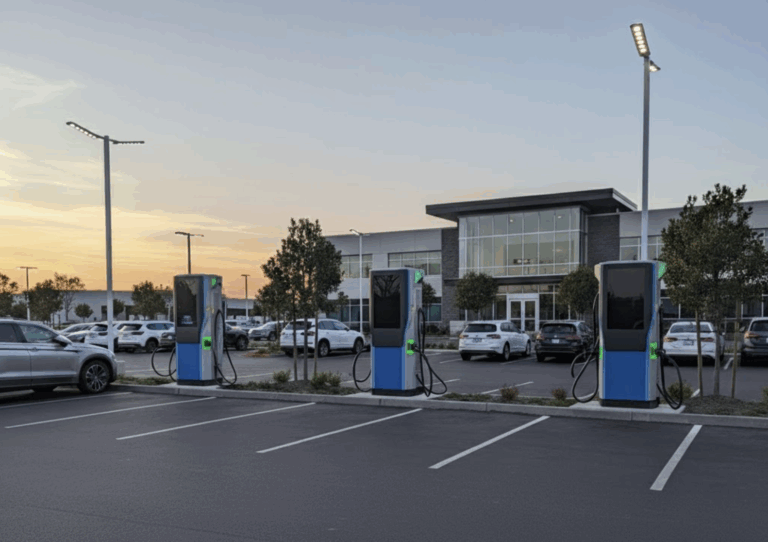

This modular, UL-certified Level 3 EV charging station—commonly referred to as a DC Fast Charger—is an ideal solution for fleet charging, shopping malls, gas stations, coffee shops, parking garages, and other public charging locations. Accept payments, track usage, and manage your station remotely with just a click. Deliver a full charge in as little as 15 to 30 minutes.

Description

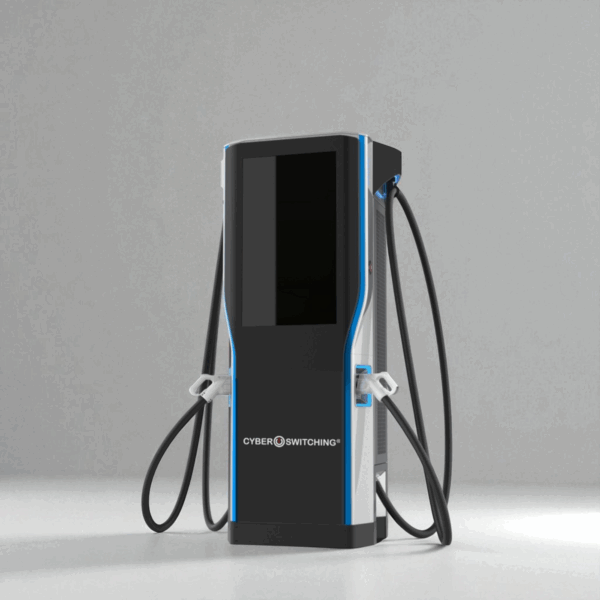

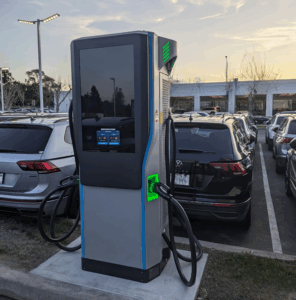

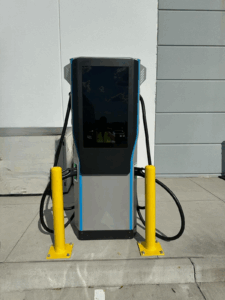

The CyberSwitching CSDC Series offers a powerful, scalable DC Fast Charging (DCFC) solution tailored for commercial and fleet applications. Available with one or two charging outlets, it delivers output power ranging from 120 kW up to 240 kW, with future provisions for upgradeability to 320 kW. This high-performance charger can refuel most electric vehicles to 80% state‑of‑charge in less than 30 minutes, making it ideal for highway rest stops, fuel stations, shopping centers, and busy fleet depots.

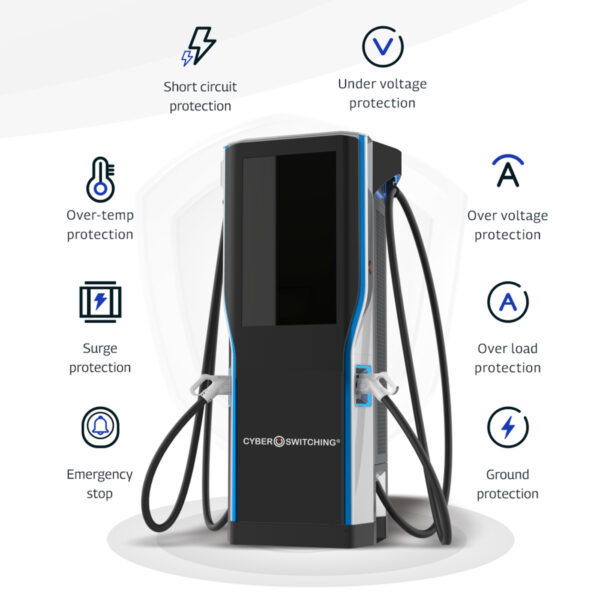

Designed with both usability and reliability in mind, the CyberSwitching CSDC features a 10‑inch high‑contrast touchscreen, multi‑color LED indicators, and supports control via RFID or mobile app. It communicates over Ethernet or optional 4G and is OCPP‑1.6J certified, with planned compatibility with OCPP 2.0.1. The station is built for rugged environments: IP54/NEMA 3R rated for dust and water resistance, has emergency stop functionality, and meets key safety and performance standards including ETL, FCC, and Energy Star.

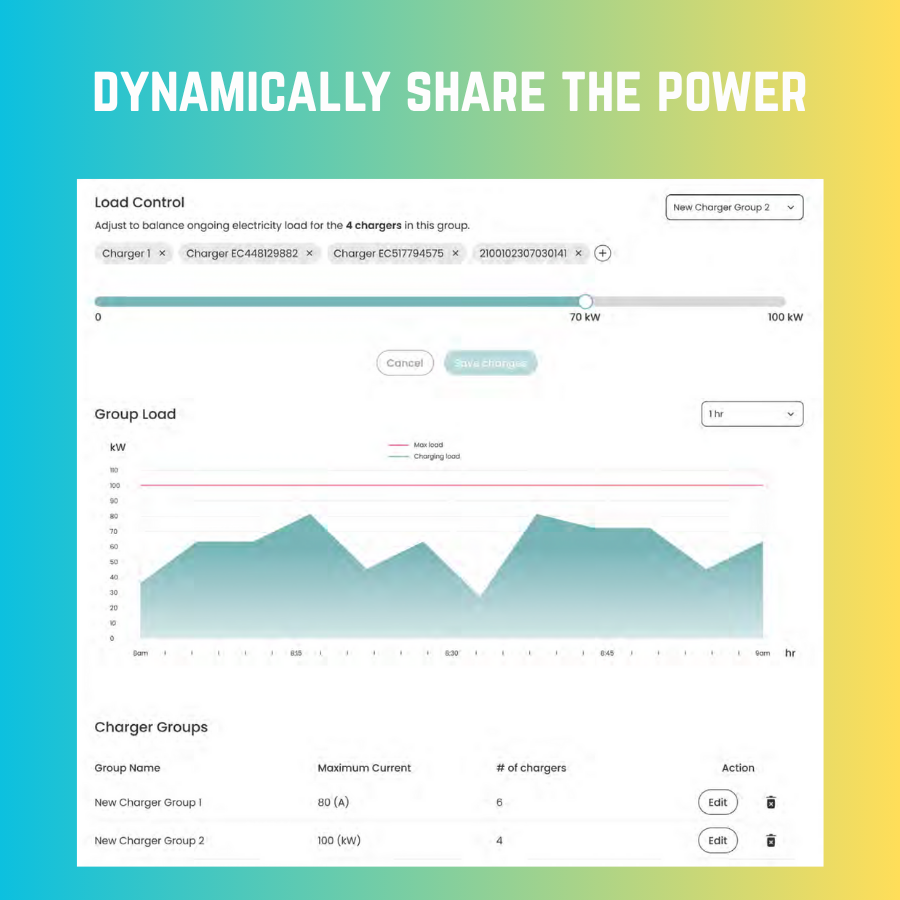

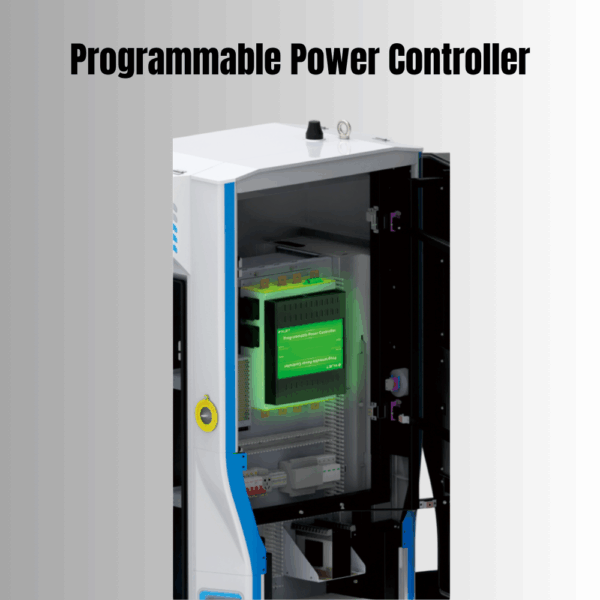

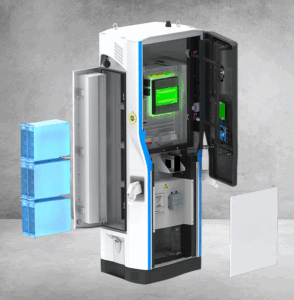

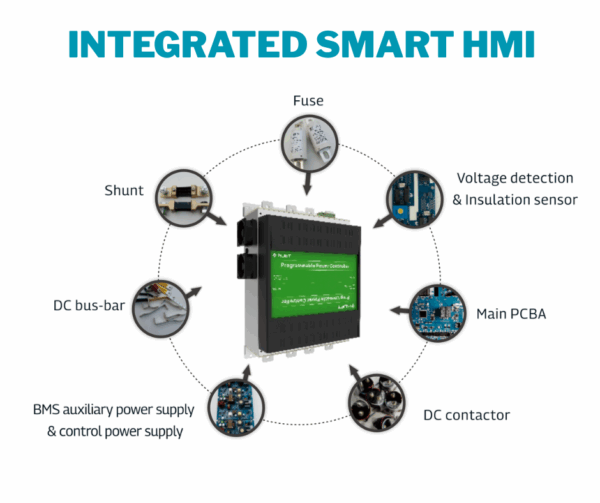

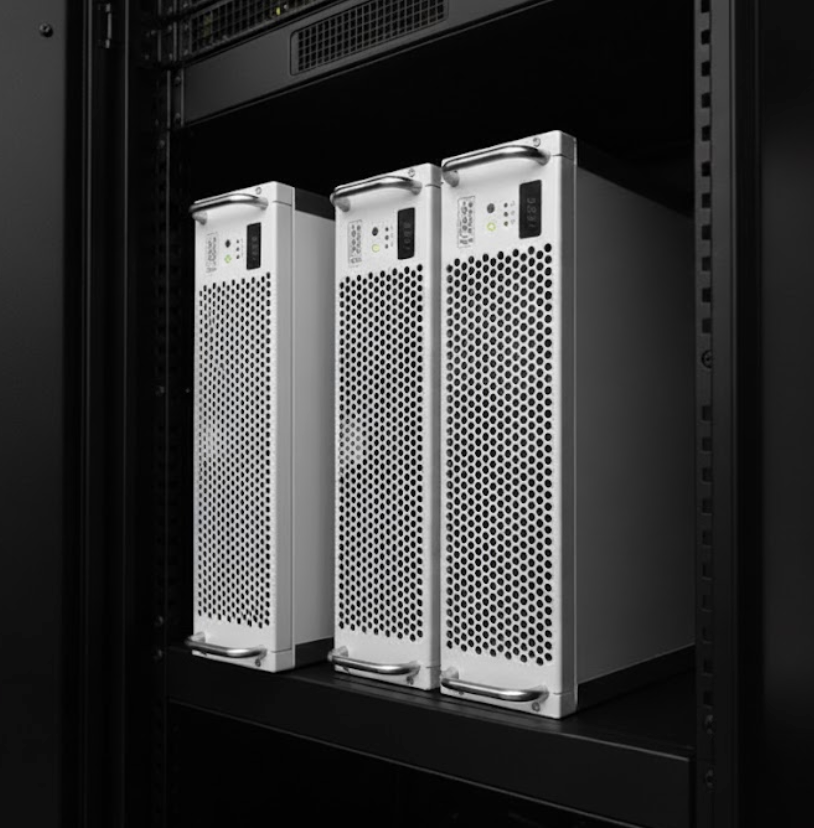

Under the hood, the CyberSwitching CSDC leverages an integrated programmable power controller (akin to the PPC architecture) that consolidates control logic and power modules, streamlining manufacturing, minimizing failure points, and accelerating maintenance cycles. The modular design allows for parallel output units and smart power allocation to maximize efficiency. Remote diagnostics and OTA updates further support reduced downtime and simplified upkeep — a critical advantage when reliability is paramount for commercial charging networks

As featured in

SPEC

  • Weight: 1,100 lbs

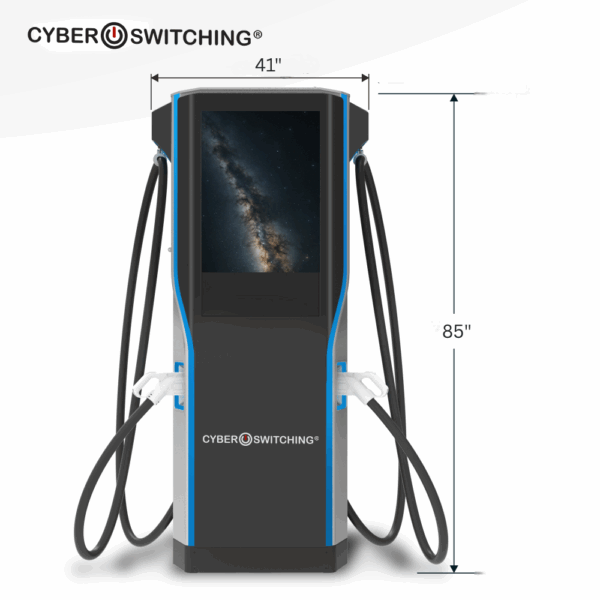

  • Dimensions: 85″ x 41″ x 22″
  • Cable: 16-foot or 24-foot
  • Output Power: 120kW to 240kW
  • Input Rating: 408Vac – 528 Vac, 3 phases, L1 +L2 +L3 +N+PE
  • Output Voltage: 300-1000 Vdc
  • Output Current: 250A
  • Frequency: 50/60 Hz
  • Display: 10 Inch Touch Screen
  • OCPP 1.6J and OCPP 2.0.1
  • ENERGY STAR certified
  • UL Certified
  • CTEP Certified
  • 2-Year Warranty
  • Operating Temperature: -31 to 131F
  • Application: indoor and outdoor
